UT-GRL

Katı Preparat Granülasyon Hattı

Name: Katı Preparat Granülasyon Hattı
Brand: UNIEN Technology

Kaynak katalogda Katı Preparat Granülasyon Hattı adıyla tanımlanan makine ailesi; model ve teknik konfigürasyon verileri katalog tablolarından aktarılmıştır.

Teklif isteyin Komple üretim hattı planlayın

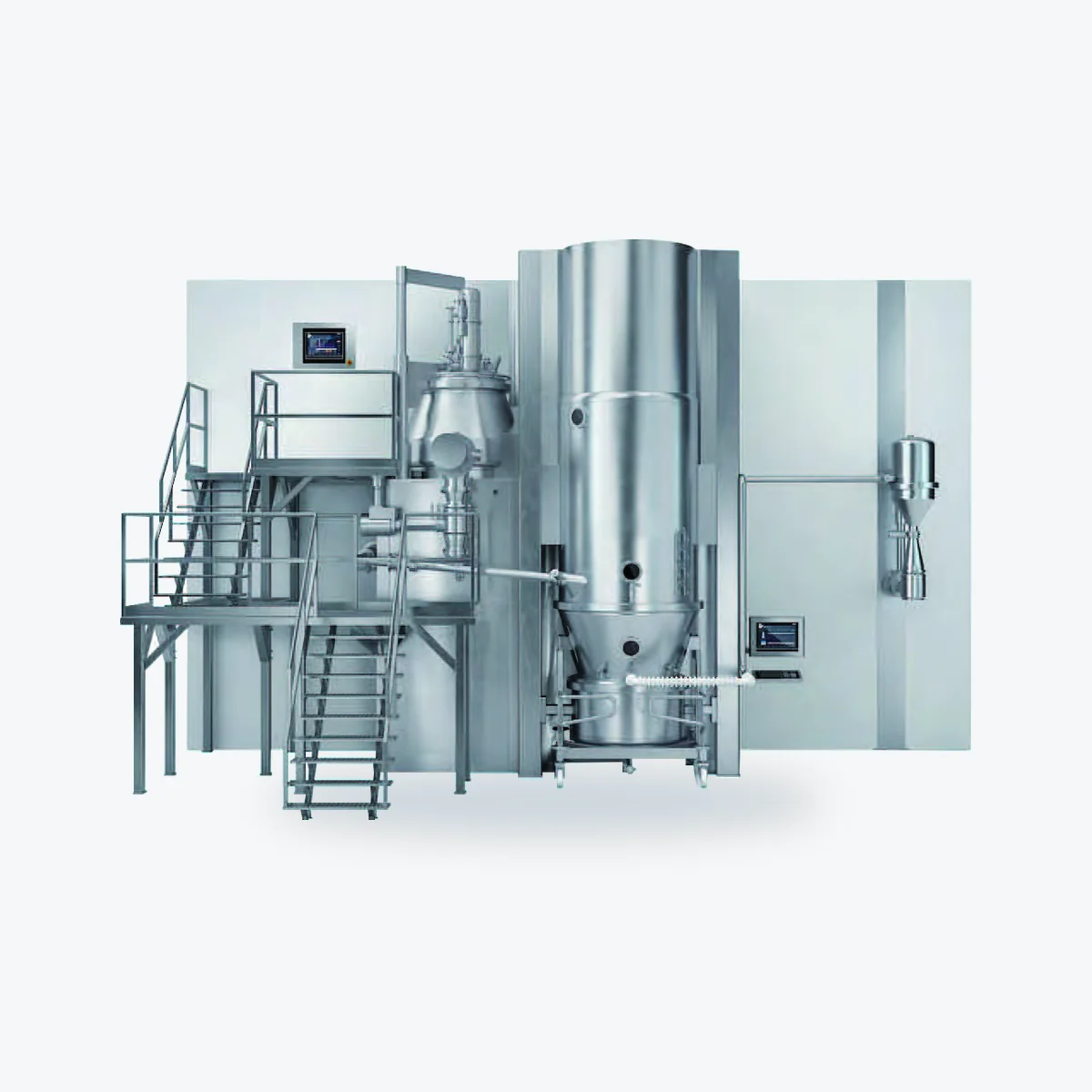

UNIEN Technology Katı Preparat Granülasyon Hattı

UT-GRL

Genel bakış

Katı Preparat Granülasyon Hattı

Kaynak katalogda Katı Preparat Granülasyon Hattı adıyla tanımlanan makine ailesi; model ve teknik konfigürasyon verileri katalog tablolarından aktarılmıştır.

UNIEN model ailesiUT-GRL

UT-GRL-3UT-GRL-5UT-GRL-10UT-GRL-20UT-GRL-30UT-GRL-60UT-GRL-100UT-GRL-120UT-GRL-150UT-GRL-200UT-GRL-250UT-GRL-300

UT-GRL

Teknik özellikler

Değerler kaynak katalogdan aktarılmıştır. Nihai konfigürasyon teklif aşamasında doğrulanır.

UT-GRL-3UT-GRL-5UT-GRL-10UT-GRL-20UT-GRL-30UT-GRL-60UT-GRL-100UT-GRL-120UT-GRL-150UT-GRL-200UT-GRL-250UT-GRL-300UT-GRL-500

Equipment	Model Data	UT-GRL-3	UT-GRL-5	UT-GRL-10	UT-GRL-20	UT-GRL-30	UT-GRL-60	UT-GRL-100	—	UT-GRL-120	UT-GRL-60	UT-GRL-100	UT-GRL-120	UT-GRL-150	UT-GRL-200	UT-GRL-250	UT-GRL-300	UT-GRL-500

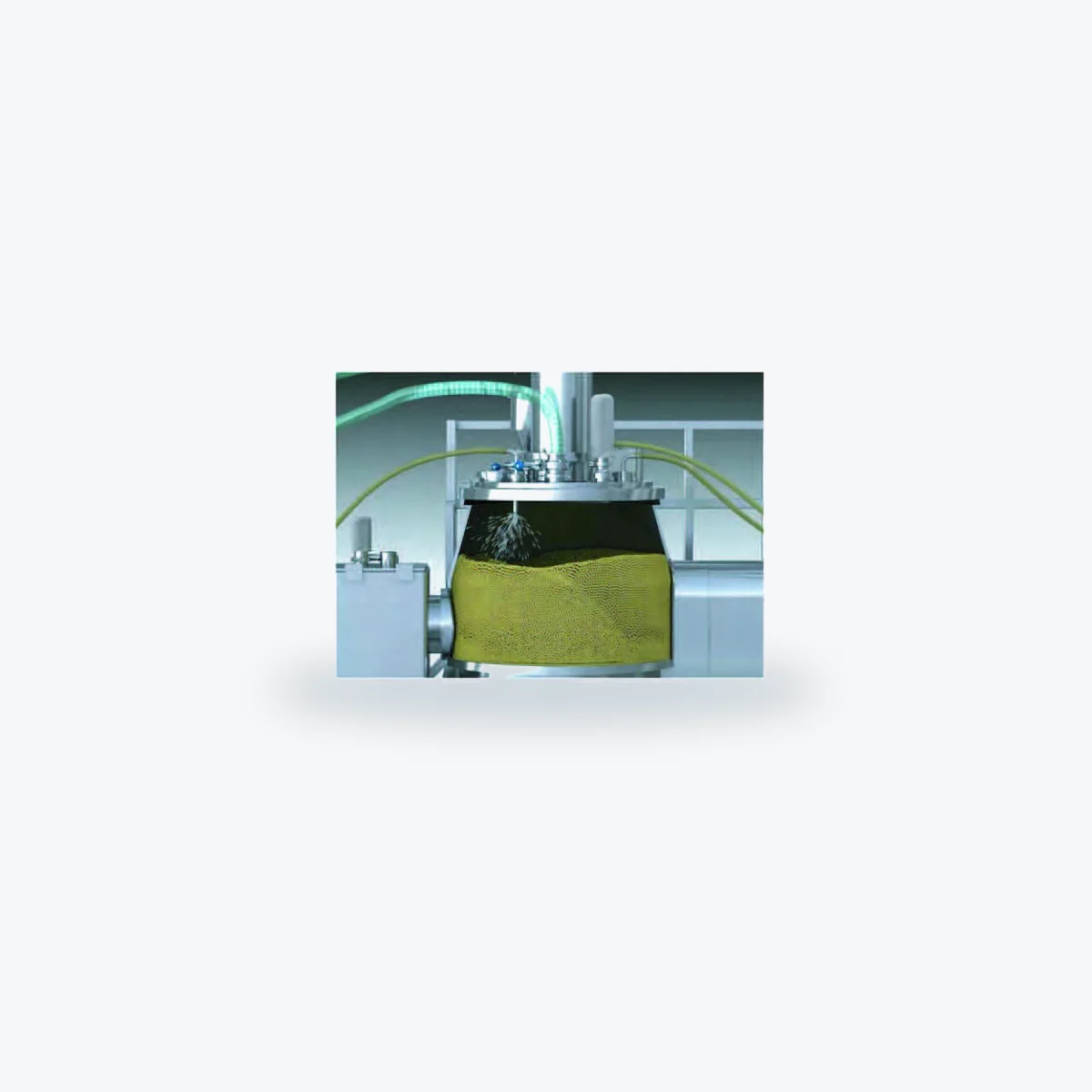

Wet Mixer	Capacity	3	5	10	20	30	60	100	—	120	60	100	120	150	200	250	300	500
—	Cutting Power	1.1	1.5	2.2	2.2	3	5.5	5.5	—	7.5	5.5	5.5	7.5	11	11	15	15	30
—	Speed	0-2900 0-2900	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—
—	Mixing Power	2.2	3	4	5.5	7.5	11	15	—	22	11	15	18.5	22	30	37	45	75
—	Speed	0-600	0-600	0-600	0-500	0-400	0-200	0-200	—	0-200	0-200	0-200	0-200	0-200	0-150	0-150	0-120	0-100
—	Volume	10	20	30	60	100	200	300	—	400	200	300	400	500	600	800	1000	1500
—	Compressed Air Pressure	0.4-0.6 0.4-0.6	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—
—	Compressed Air Consumption	0.25	0.25	0.3	0.3	0.5	0.6	0.9	—	0.9	1.5	1.5	1.5	1.5	1.8	1.8	1.8	2.1
Wet Granulator	Granulator Power	0.55	0.55	0.75	0.75	1.1	1.5	2.2	—	2.2	0.9	1.1	1.5	1.5	2.2	3	4	5.5
—	Speed	0-1400 0-1400	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—
—	Screen Hole Siameter	8-12 8-12	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—

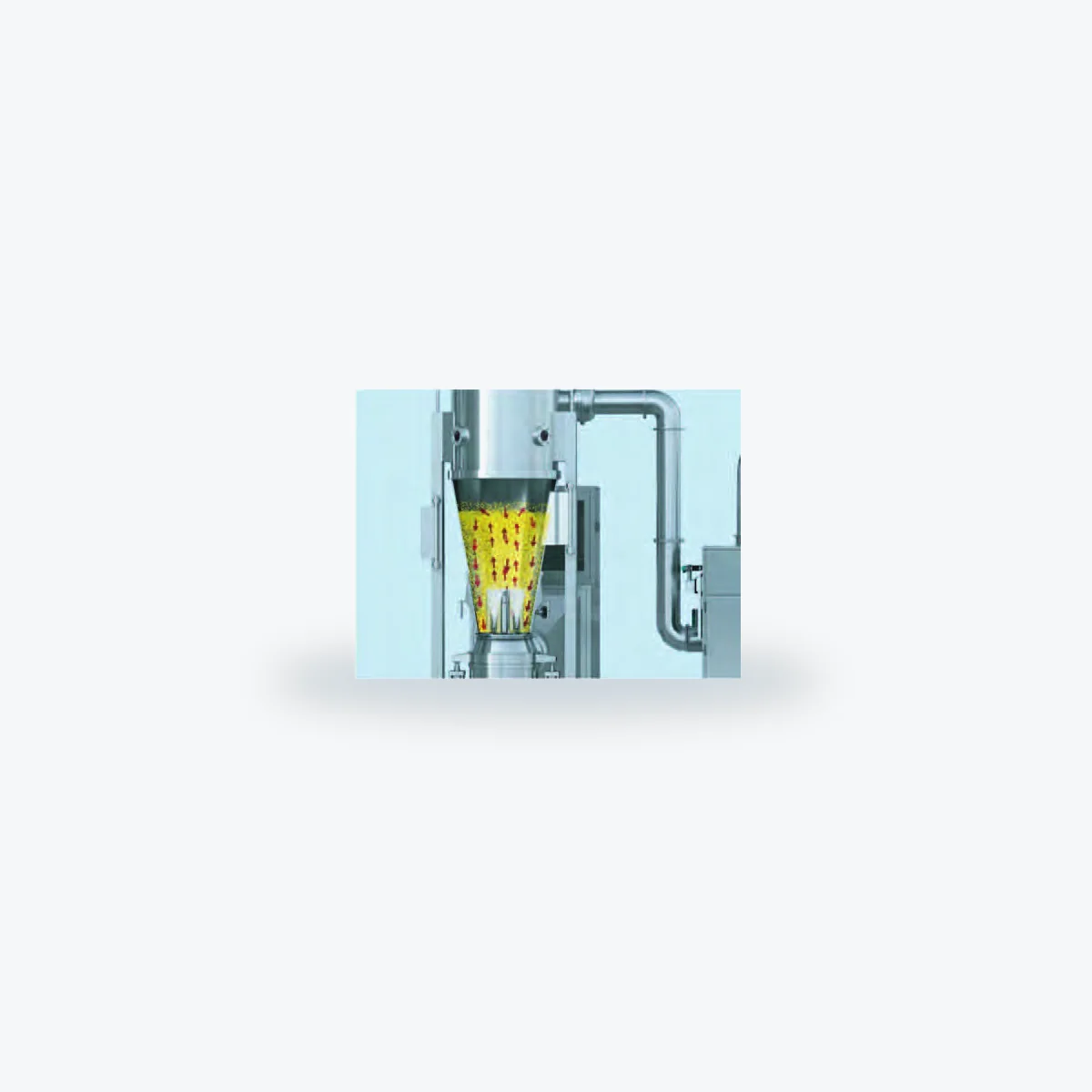

Fluidized Dryer	Cylinder Siameter	400	550	500	600	800	1000	1100	—	1200	1000	1100	1200	1300	1400	1500	1000	1800
—	Volume	20	25	40	70	100	220	360	—	420	220	360	420	550	670	800	1000	1500
—	Induced Draft Fan Power	4	5.5	7.5	7.5	7.5	11	10.5	—	10.5	15	18.5	22	22	30	45	45	55
—	Air Volume	2062	2504	2844	2844	2844	5394	5153	—	5153	6394	5153	7400	7400	6978	11883	11883	9988
—	Wind Pressure	4447	4112	5517	5517	5517	5381	9055	—	9055	5381	9055	7185	7185	8184	8915	8915	10426
—	Electric Heating Power	6	9	15	27	36	45	54	—	54	36	45	63	63	72	108	135	180
—	Steam Heat Exchange Area	—	—	—	—	—	45	60	—	60	45	60	80	80	90	120	120	200
—	Steam Pressure	—	—	—	—	—	0.4-0.6 0.4-0.6	—	—	—	—	—	—	—	—	—	—	—
—	Steam Consumption	—	—	—	—	—	—	211	—	211	140	211	211	260	282	366	381	465
—	Compressed Air Pressure	0.4-0.6 0.4-0.6	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—
—	Compressed Air Consumption	0.6	0.9	—	1.1	1.1	1.1	1.5	—	0.9	0.6	0.9	0.9	1.1	1.1	1.1	1.5	1.5
—	Moisture After Drying	0.5 0.5	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—
Dry Granulator	Granulator Power	0.55	0.55	0.75	0.75	1.1	1.5	2.2	—	2.2	1.1	1.5	1.5	1.5	2.2	3	4	5.5
—	Speed	0-1400 0-1400	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—
—	Screen Hole Diameter	1-3 1-3	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—
Pneumatic Vacuum Feeder	Model	QVC-1	—	—	—	—	QVC-2	QVC-3	—	QVC-3	QVC-2	QVC-3	QVC-3	QVC-4	QVC-4	QVC-4	QVC-5	QVC-5
—	Compressed Air Pressure	0.6 0.6	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—
—	Compressed Air Consumption	360	—	—	—	—	360	720	—	720	360	720	720	1440	1440	1440	2880	2880
—	Transport Capacity(kg/h	100-600 ）	—	—	—	—	100-600	300-800	—	300-800	100-600	300-800	300-800	600-2000	600-2000	600-2000	900-3000	900-3000
